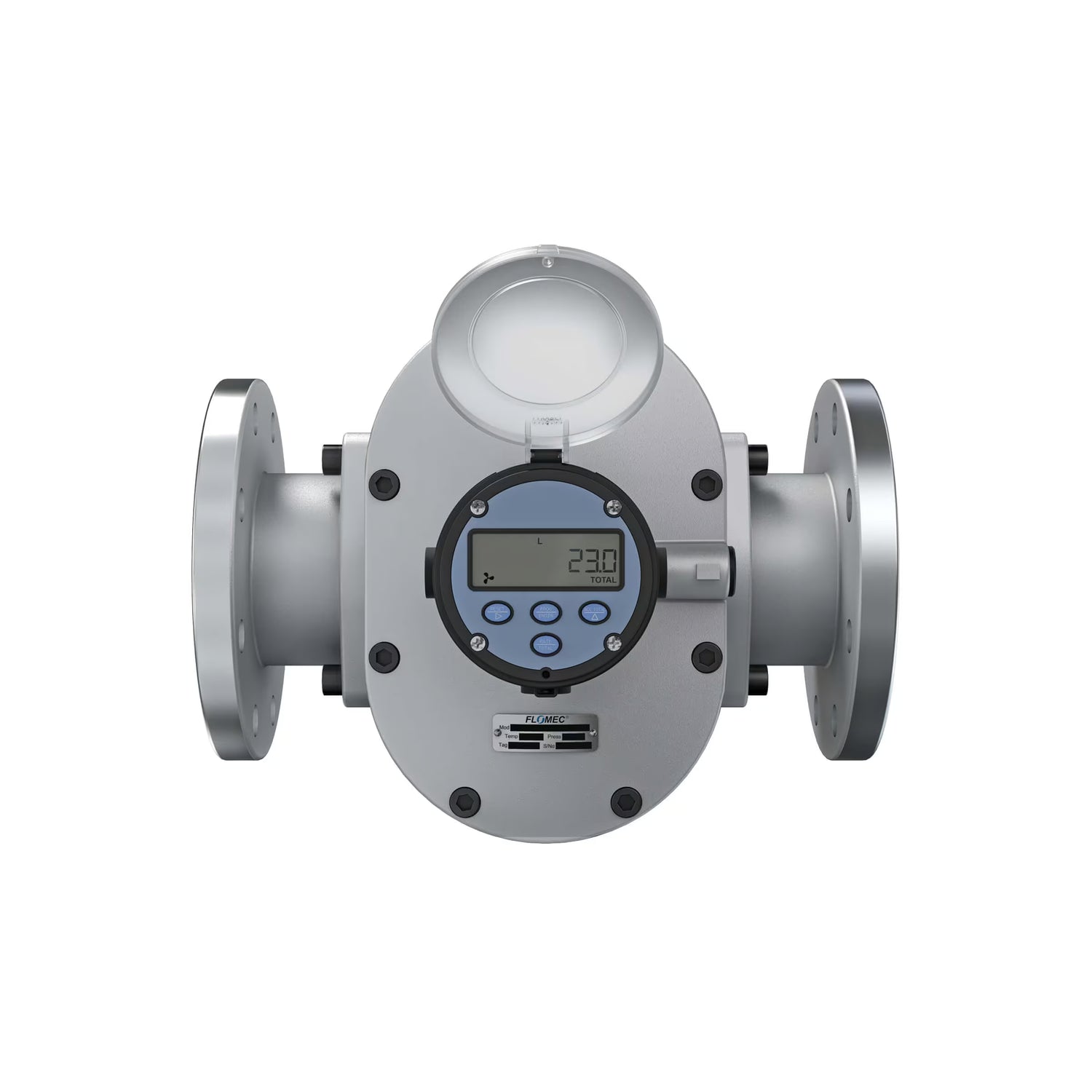

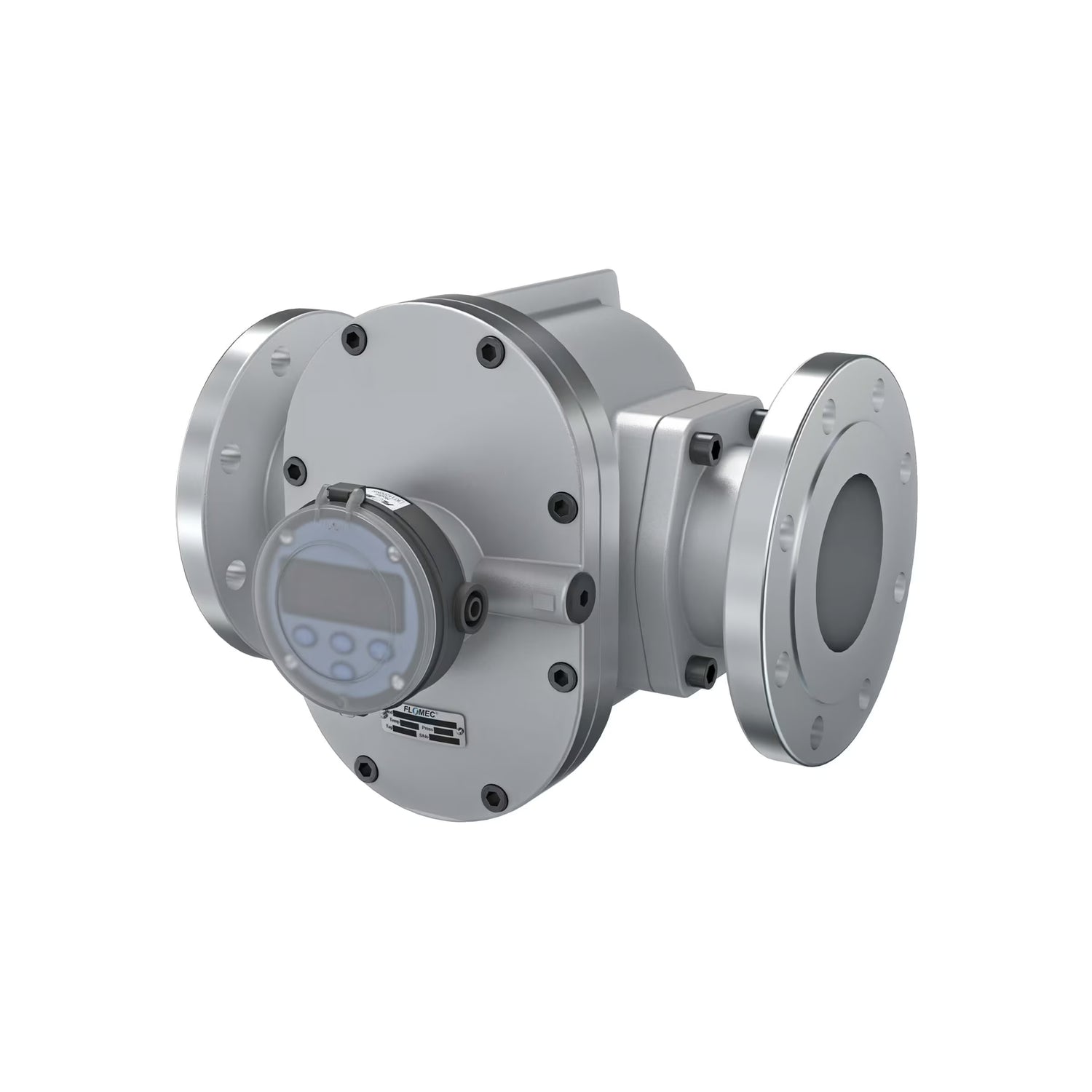

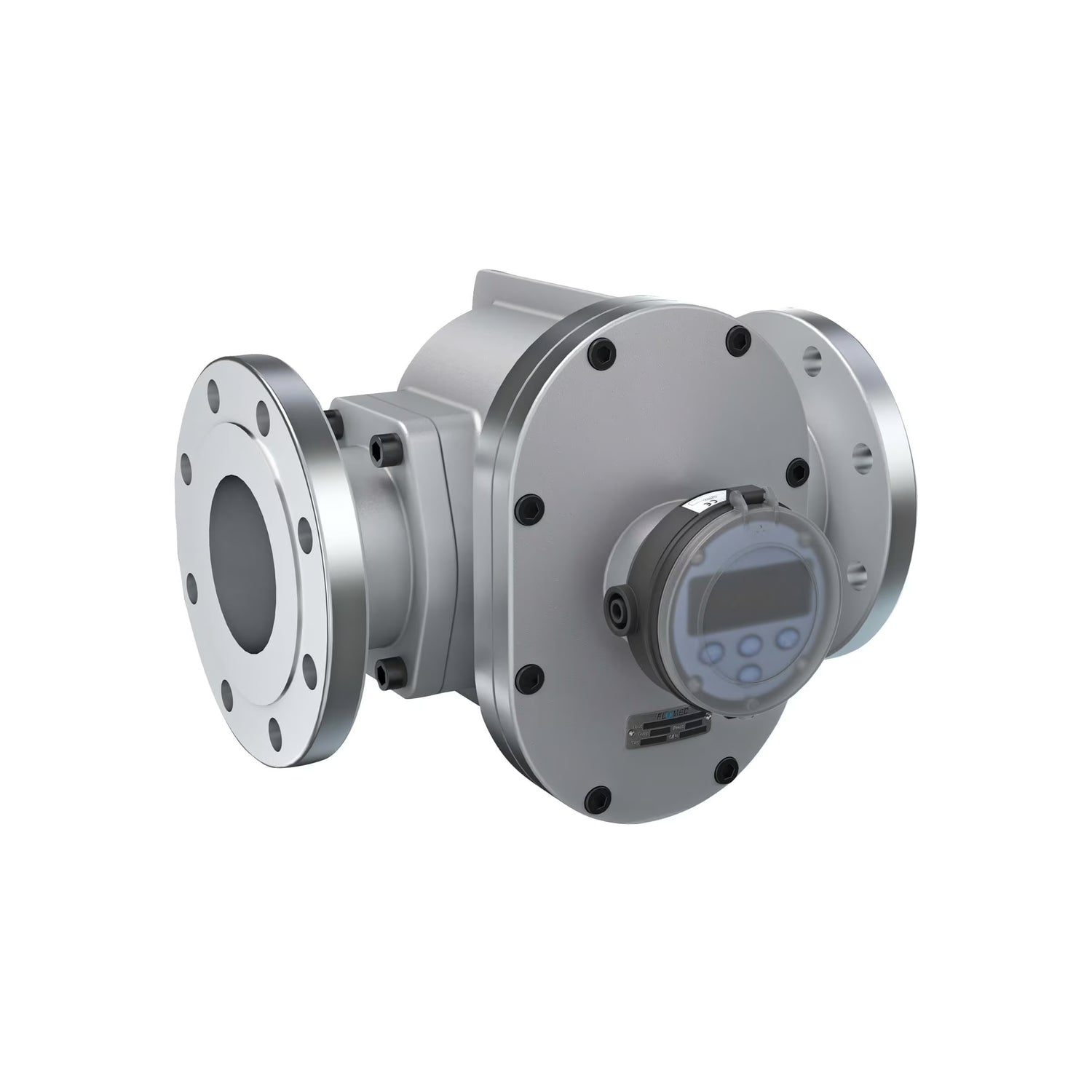

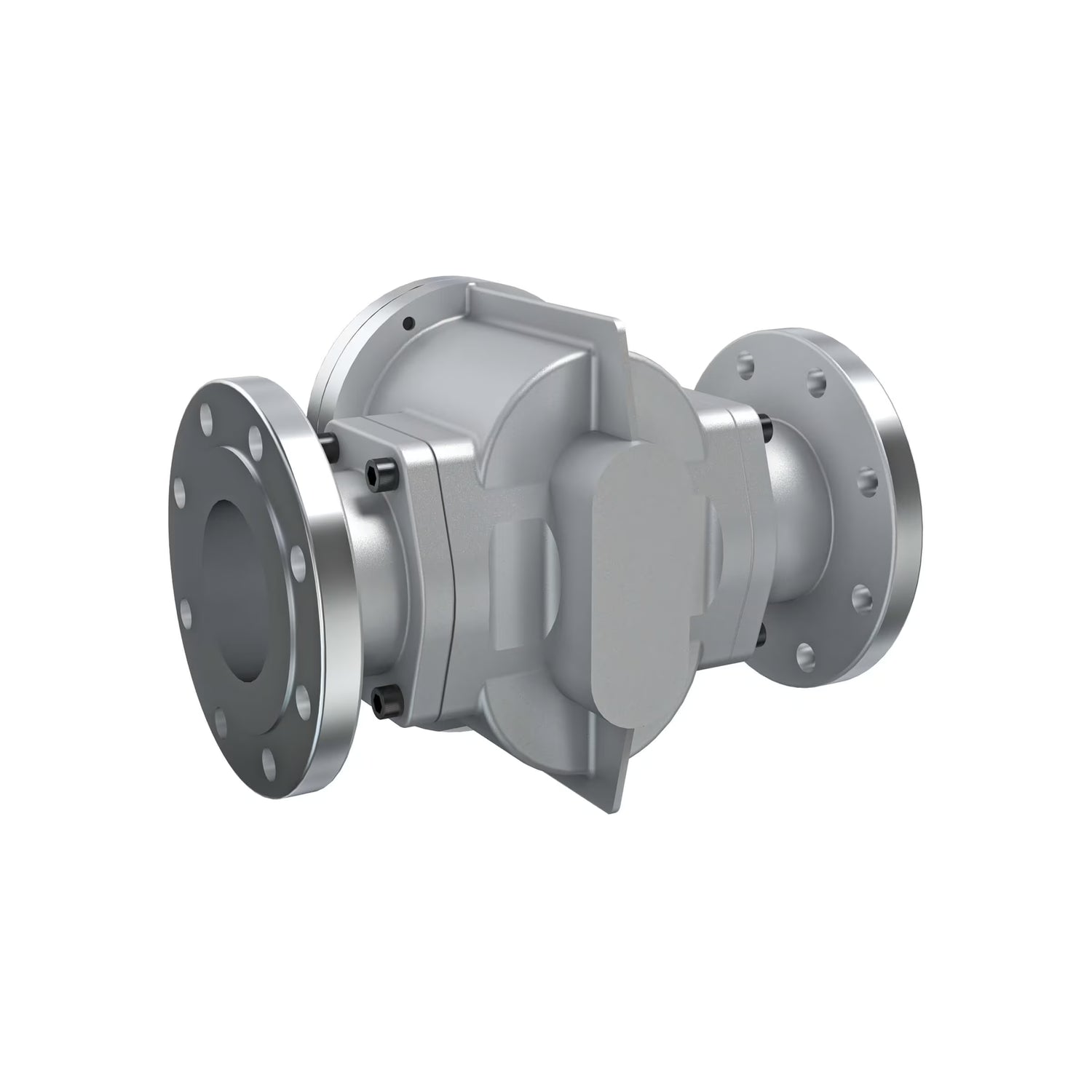

4" Oval Gear Aluminum #150 ANSI Flange Flow Meter, RT14 Transmitter with Built-In Digital Display

4-inch Aluminum Oval Gear Flow Meter with #150 ANSI Flange Fittings. RT14 Transmitter with Built-In Digital Display. For fuel additives, solvents, grease, oil, paint.

The FLOMEC Aluminum Oval Gear Series is the ideal economical choice for high-accuracy batching, dosing, or packaging of clean solvents, grease, oil, additives, and other high-viscosity fluids. Oval gear technology features rotors that provide highly accurate and repeatable direct volumetric readings.

Flow Meter: No requirement for flow conditioning or straight pipe runs makes them ideal for compact installations with limited space.

RT14 Transmitter/Display: Fully programmable self-powered display with re-settable (batch) total, cumulative total, and instantaneous flow rate. This four-button design can provide an externally powered analog output, plus a discrete output or high/low alarms for easy connection to a variety of chart recorders, display equipment, and process control equipment.
