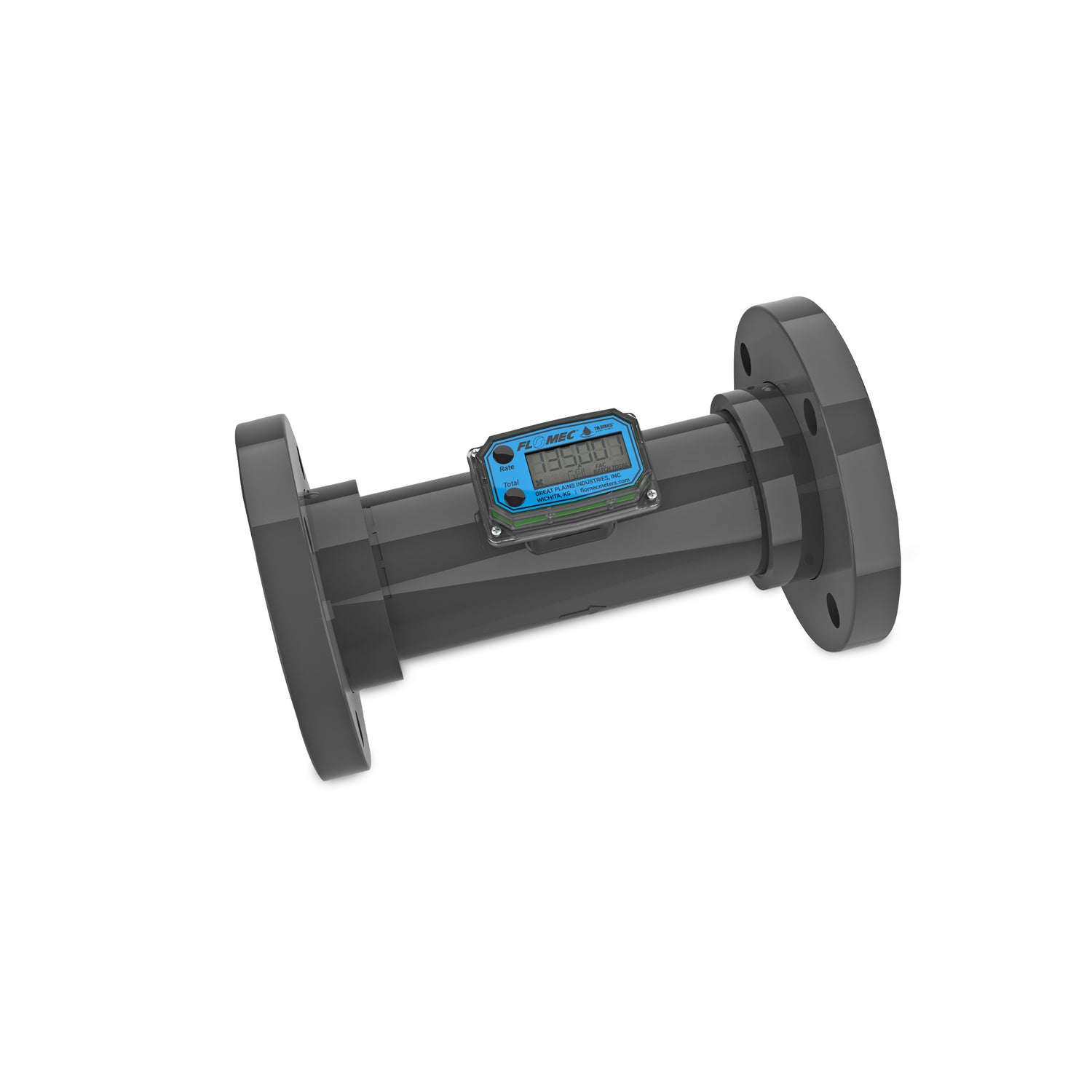

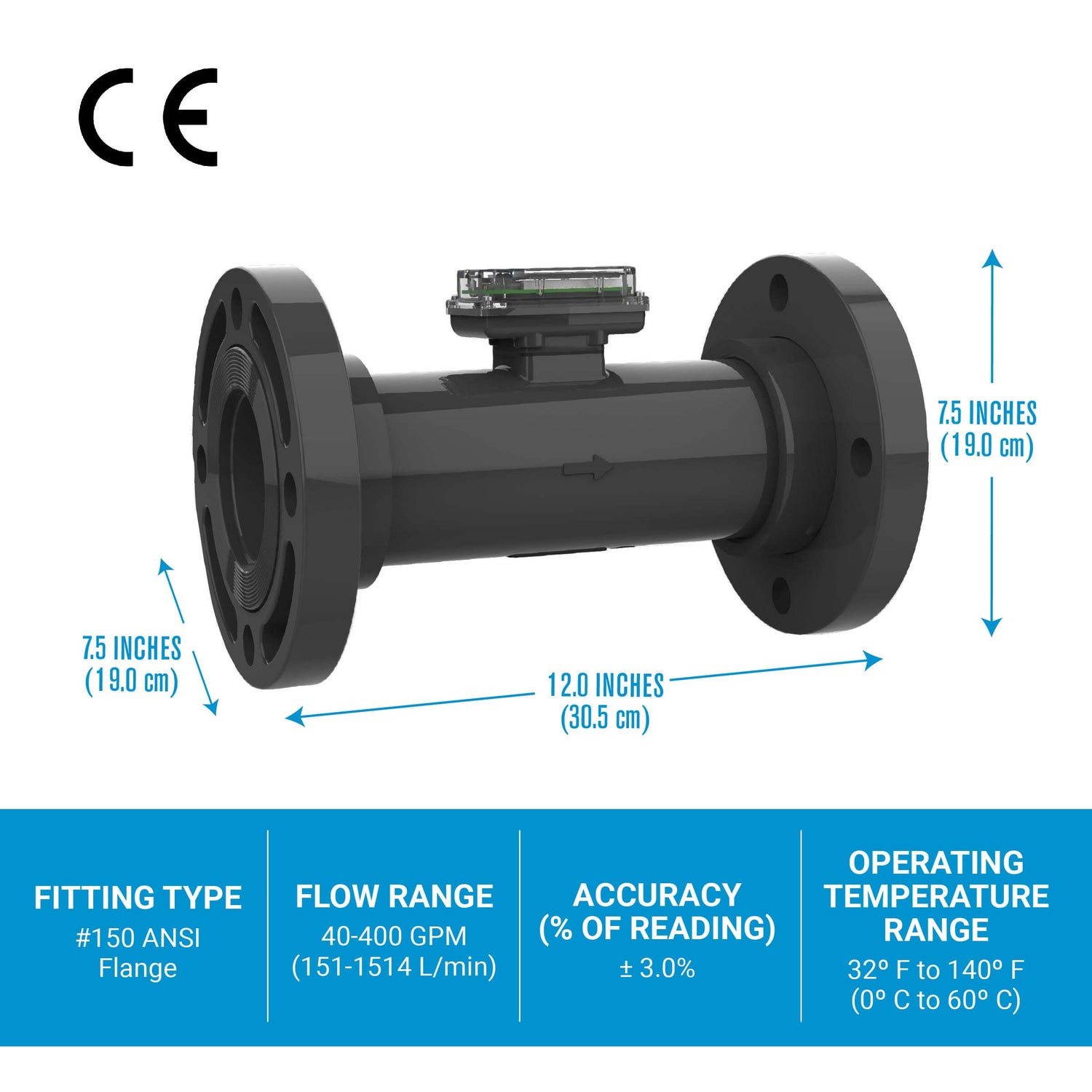

3" Turbine PVC #150 ANSI Flange Flow Meter with Digital Display

3-inch PVC Flow Meter with #150 ANSI Flange Fittings. Q9 Digital Display. For clean fluids, groundwater, and water.

The FLOMEC TM Series is constructed of Schedule 80 PVC for a long-lasting solution exceeding flow measurement requirements. It’s one of the most versatile turbine meters in the industry with fitting types that allow you to customize the meter to your application needs.

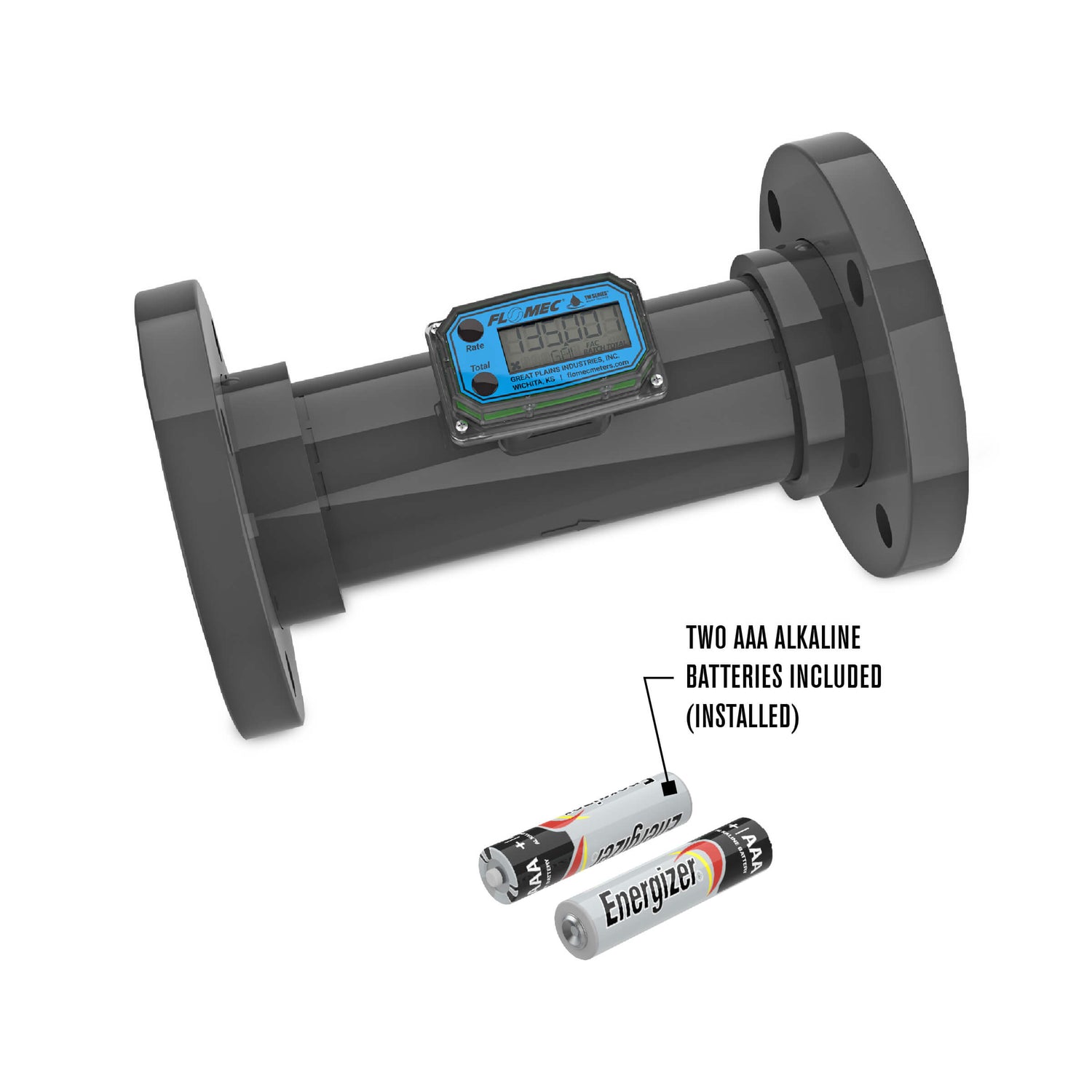

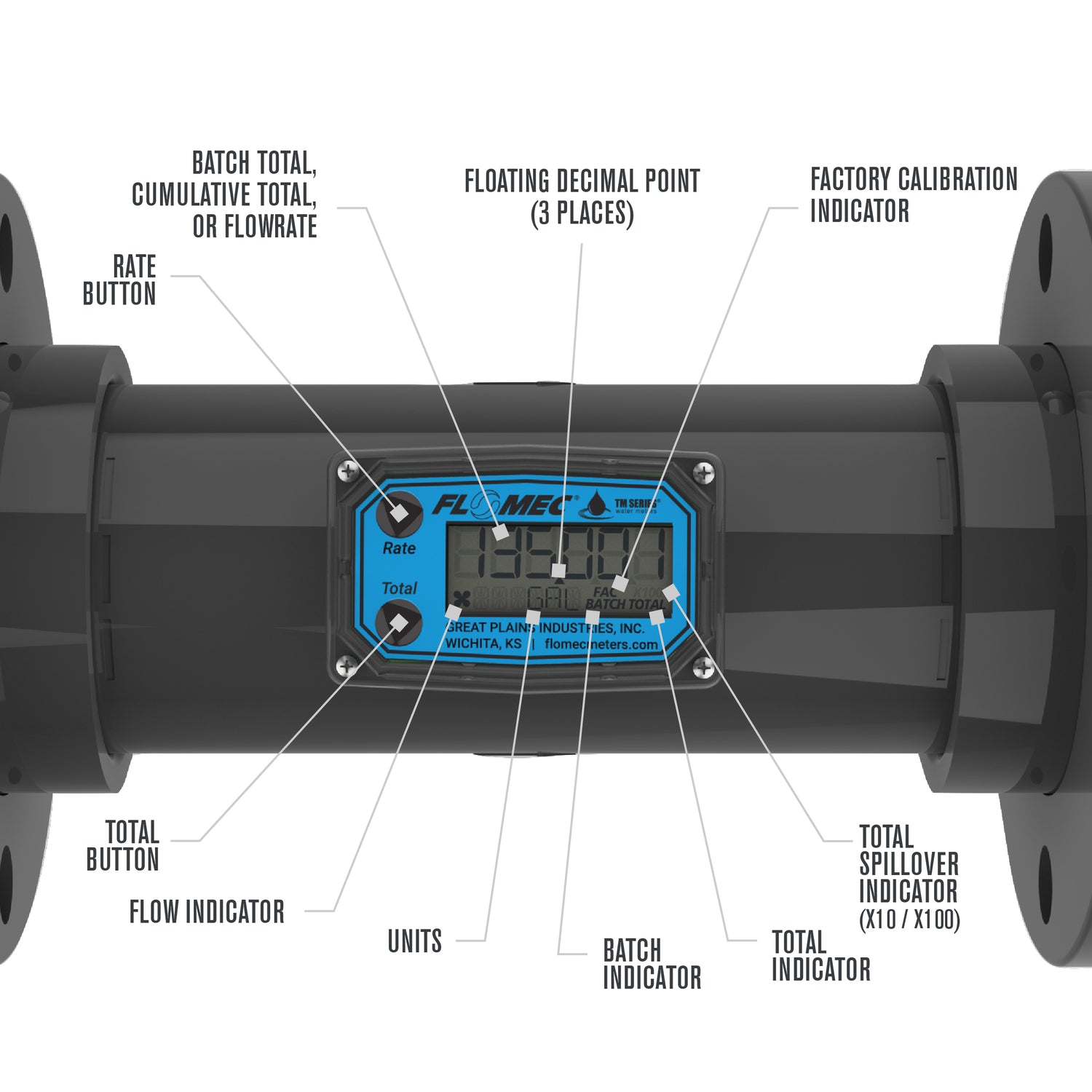

Q9 Digital Display: Battery-powered two button digital display has 11 pre-programmed units of measure plus 1 custom option.

Optional: Use the 4-20mA Output Module (125100-10) as a digital display add-on to provide an industry-standard analog output along with a discrete output for connection to a variety of chart recorders, display equipment, and process control equipment. See specifications for performance details.

NOTE: The 4-20mA Output Module is not FM Approved. Therefore, using these options with an approved metering system voids FM Approval.
