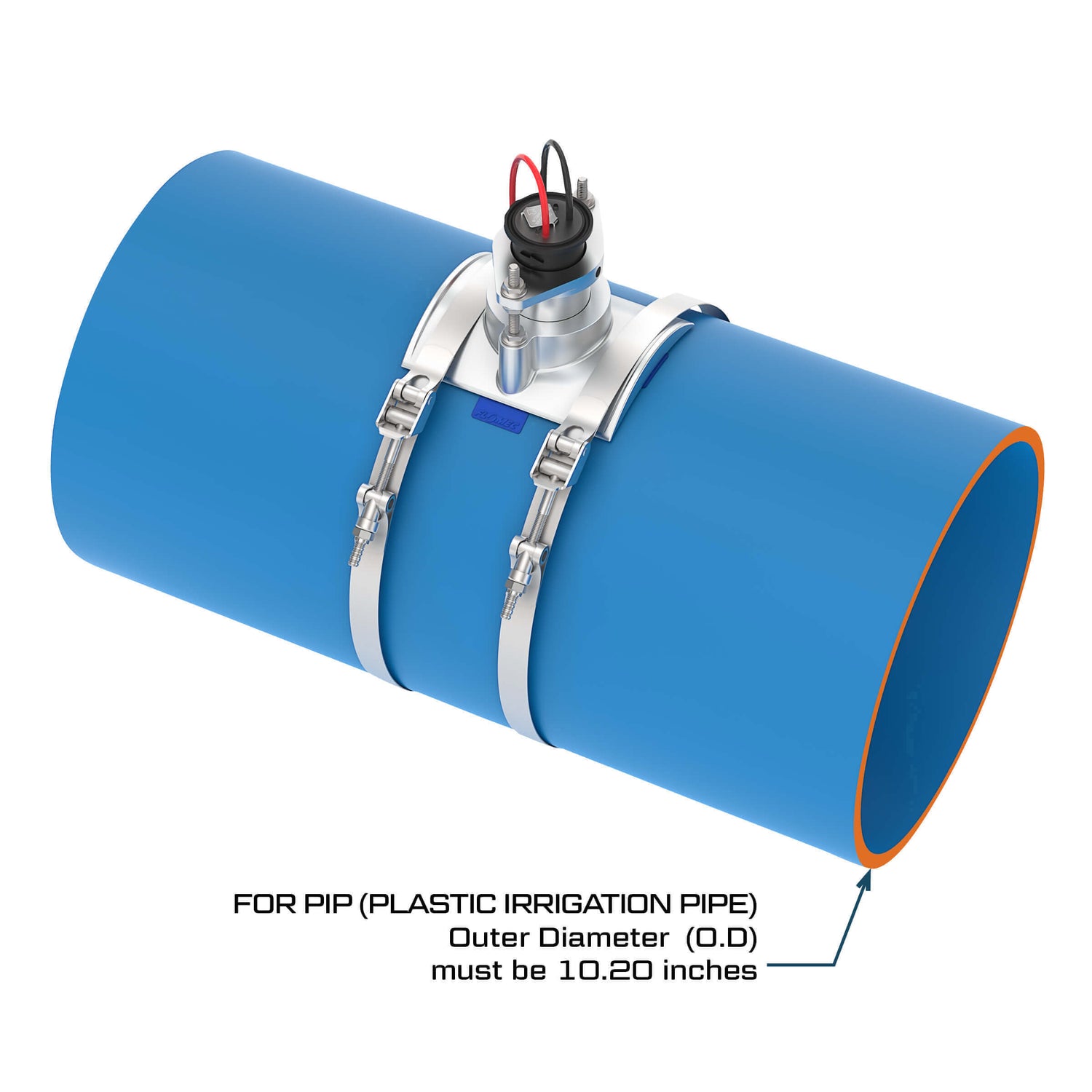

10" Ultrasonic Flow Sensor with Saddle for Plastic Irrigation Pipe (PIP)

10-inch Ultrasonic Flow Sensor with Saddle for Plastic Irrigation Pipe (PIP). For irrigation.

Flow Sensor: The QS200 ultrasonic flow sensor insert is designed for above and below grade applications such as turf, irrigation, municipal and underground water monitoring. QS200 monitors flow rates between 0.1 to 15fps (0.03 to 4.6 m/s) and works in applications below 140° F (60° C).

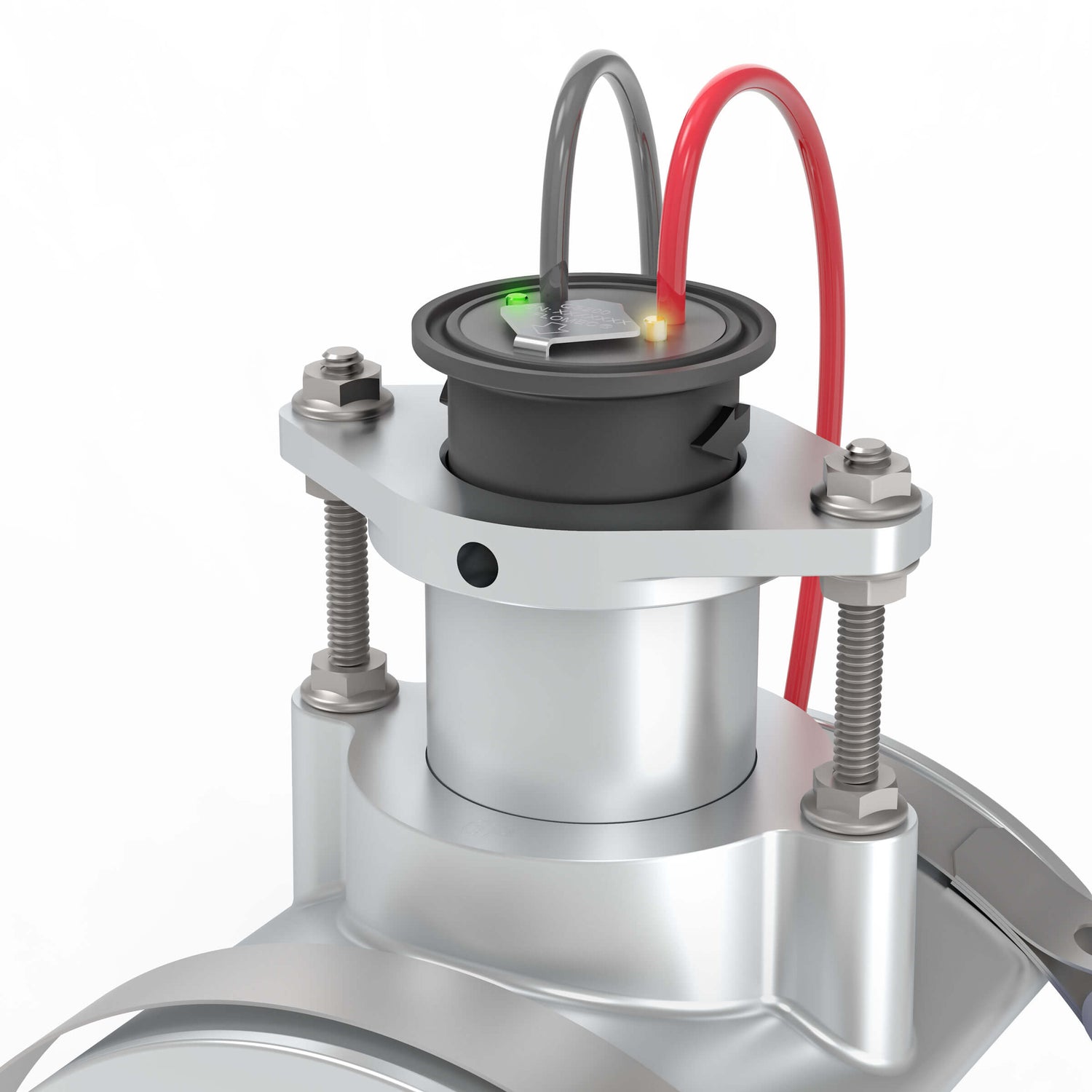

QS200 sensors accurately provide the information your controller needs to display flow rate and accumulated total. Sensors are supplied with two single conductors, 18 AWG solid copper wire leads that are 36 inches (914.4 mm) in length with UL Style 116666 direct burial insulation.

For PIP SADDLE TYPE CLICK HERE - Review this table to determine fit
