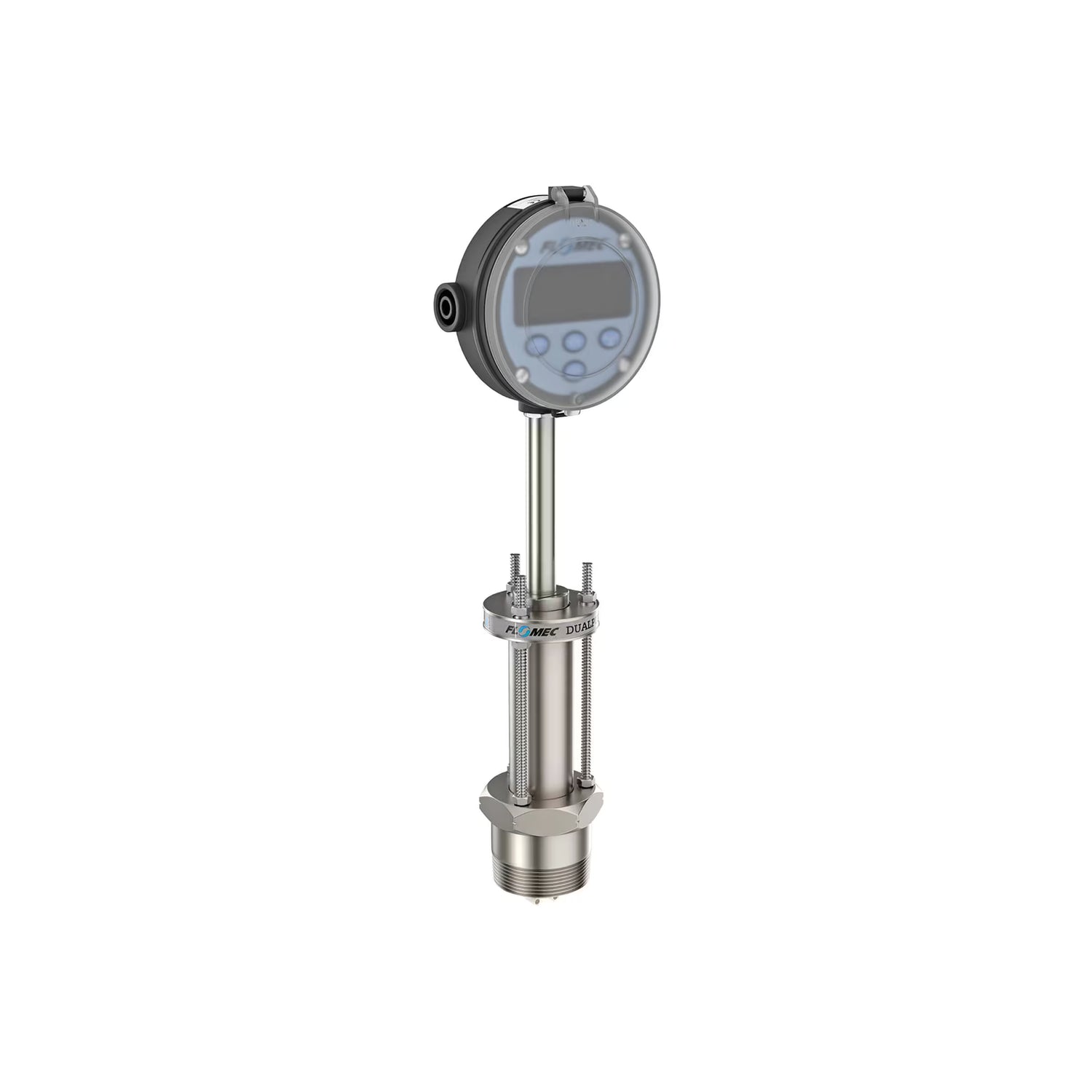

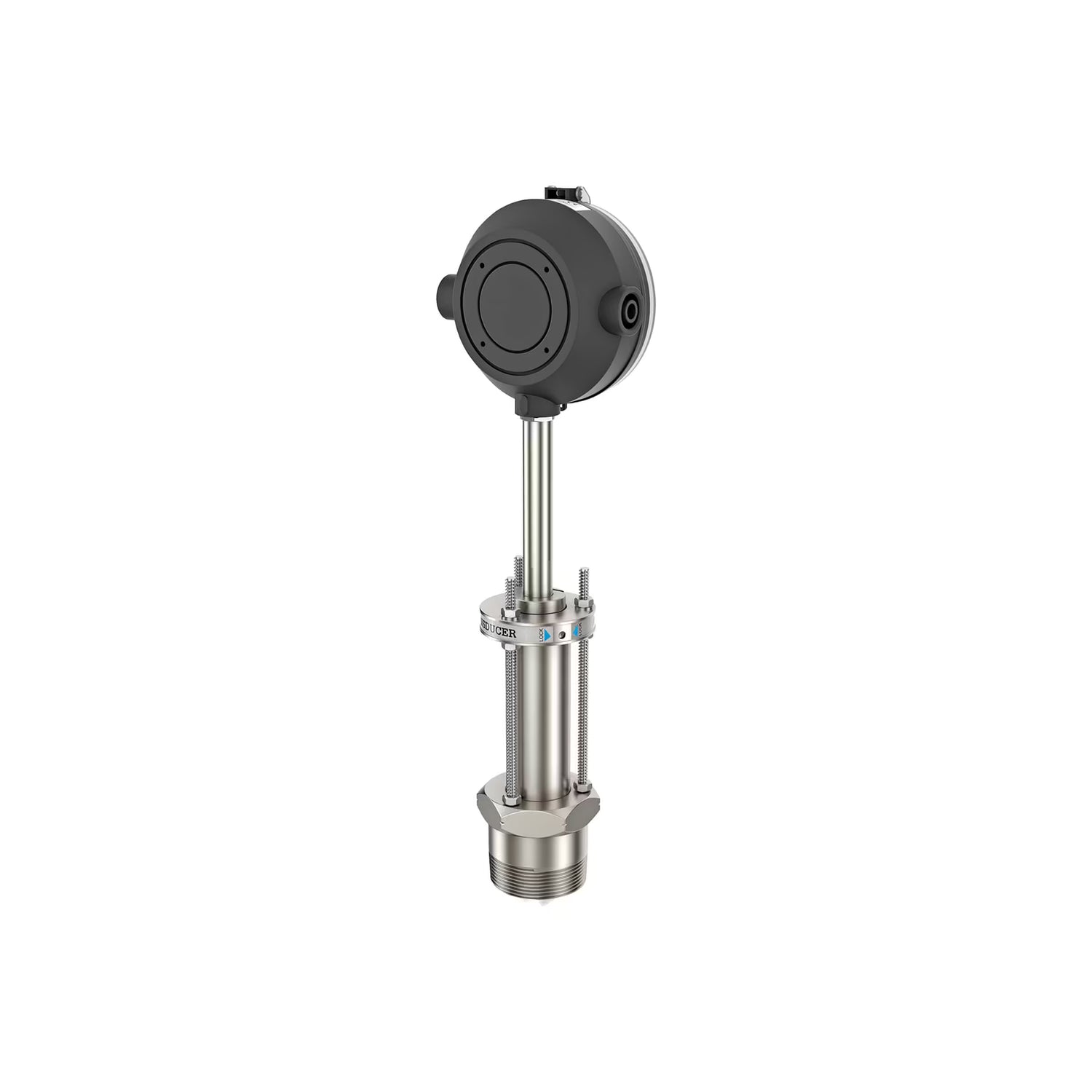

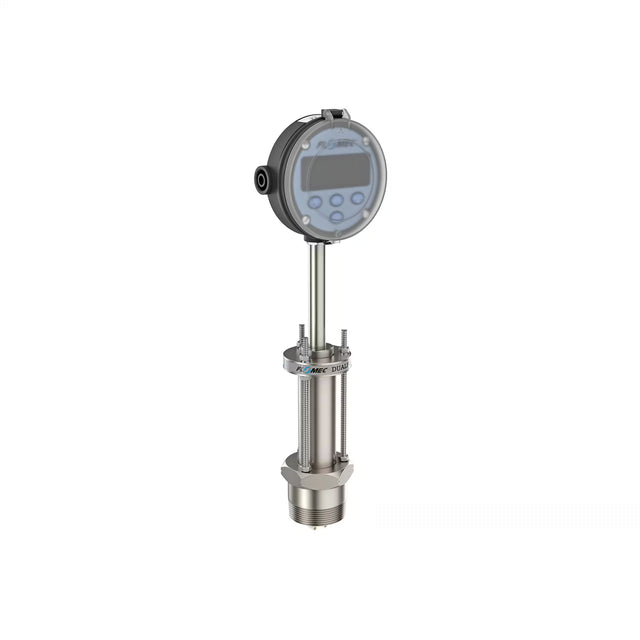

1.5" to 35.4" Paddlewheel Stainless Steel Flow Meter, Transmitter with Built-In Digital Display

1.5" to 35.4" Stainless Steel Flow Meter with 1-1/2-inch MNPT Fitting. RT14 Transmitter with Built-In Digital Display. For non-potable water and solvents.

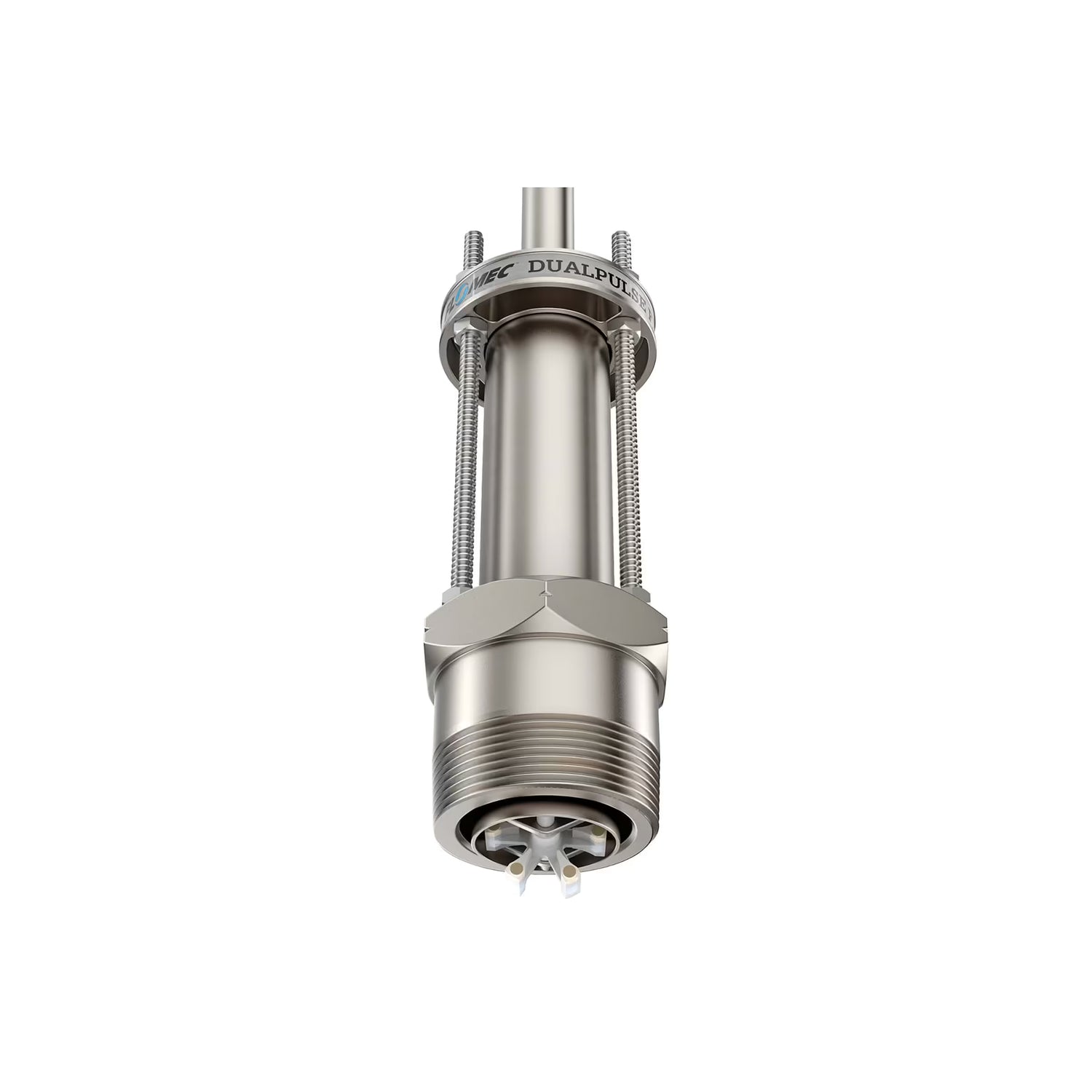

FLOMEC DP Series Insertion meters use a paddlewheel design to measure the flow of water and other low-viscosity liquids. Only one moving part provides a reliable product with minimal maintenance costs. DP Series insertion meters are a versatile and economical solution for measuring flow in large pipes, offering +/- 1.5% accuracy.

Flow Meter: 1.5-inch to 35.4-inch (10-900mm). 1-1/2-inch MNPT fitting. The DP Series flow meter is also available in a 2 -100 size range and with integral options.

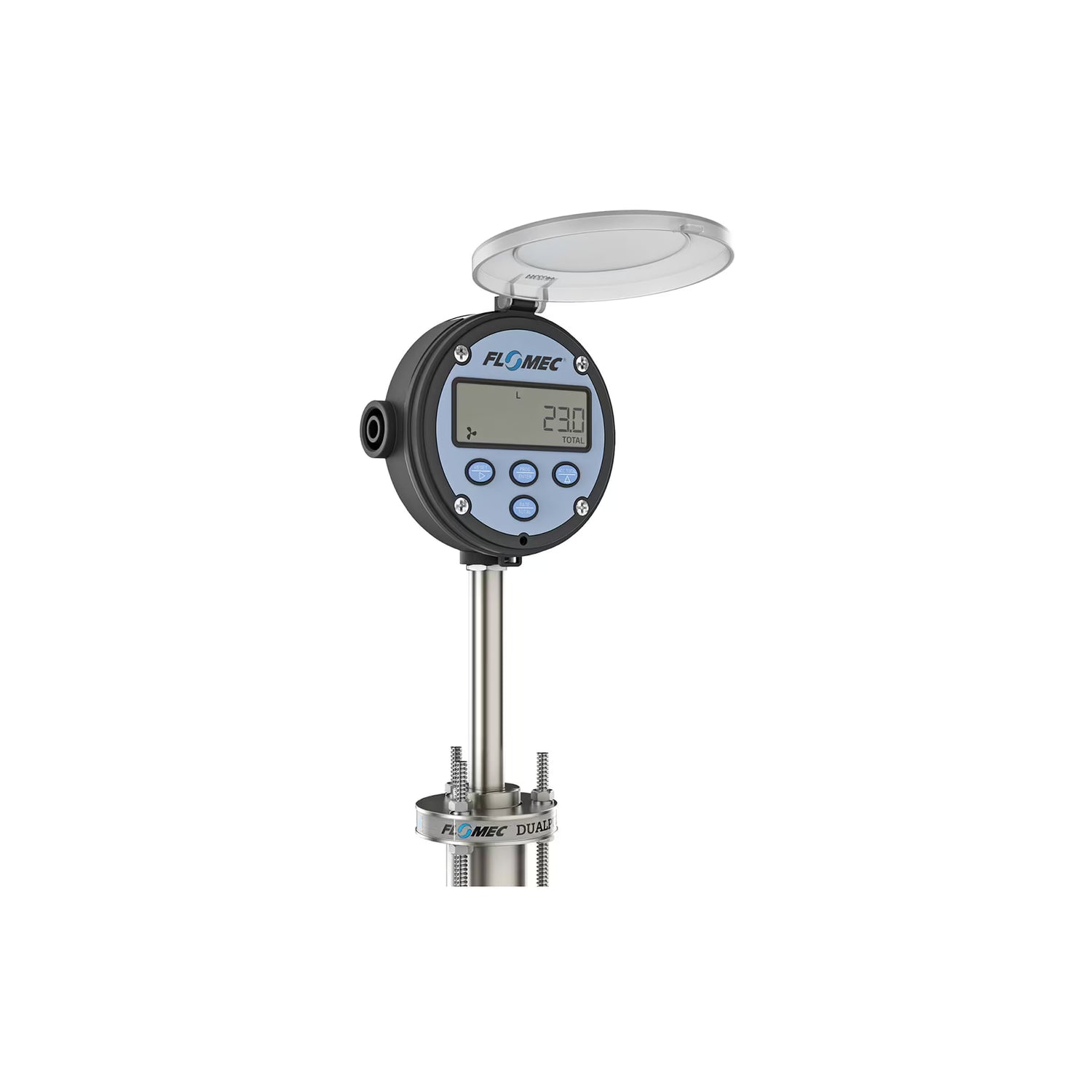

RT14 Display: Fully programmable self-powered flow rate totalizer. Four-button design with discrete and analog output.
