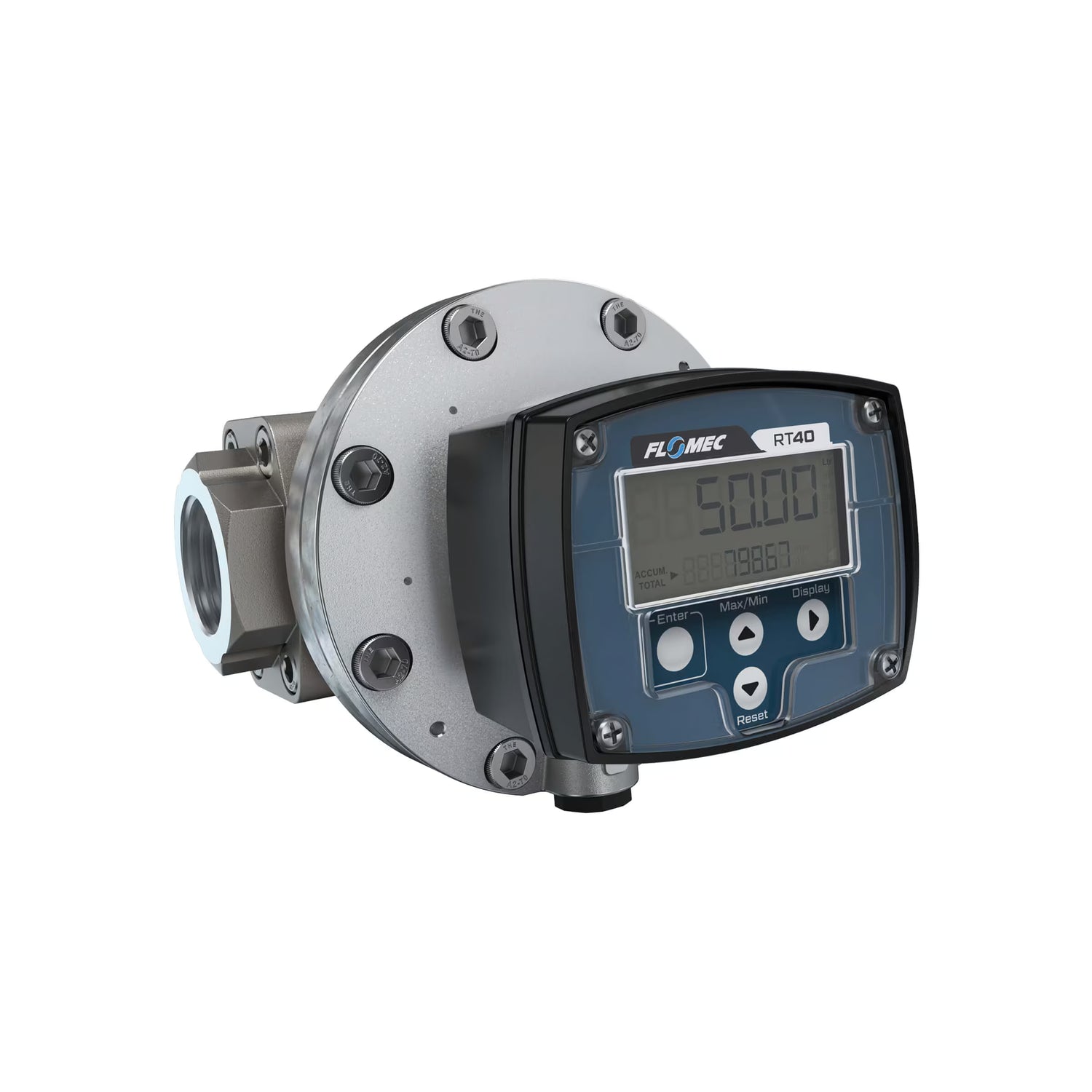

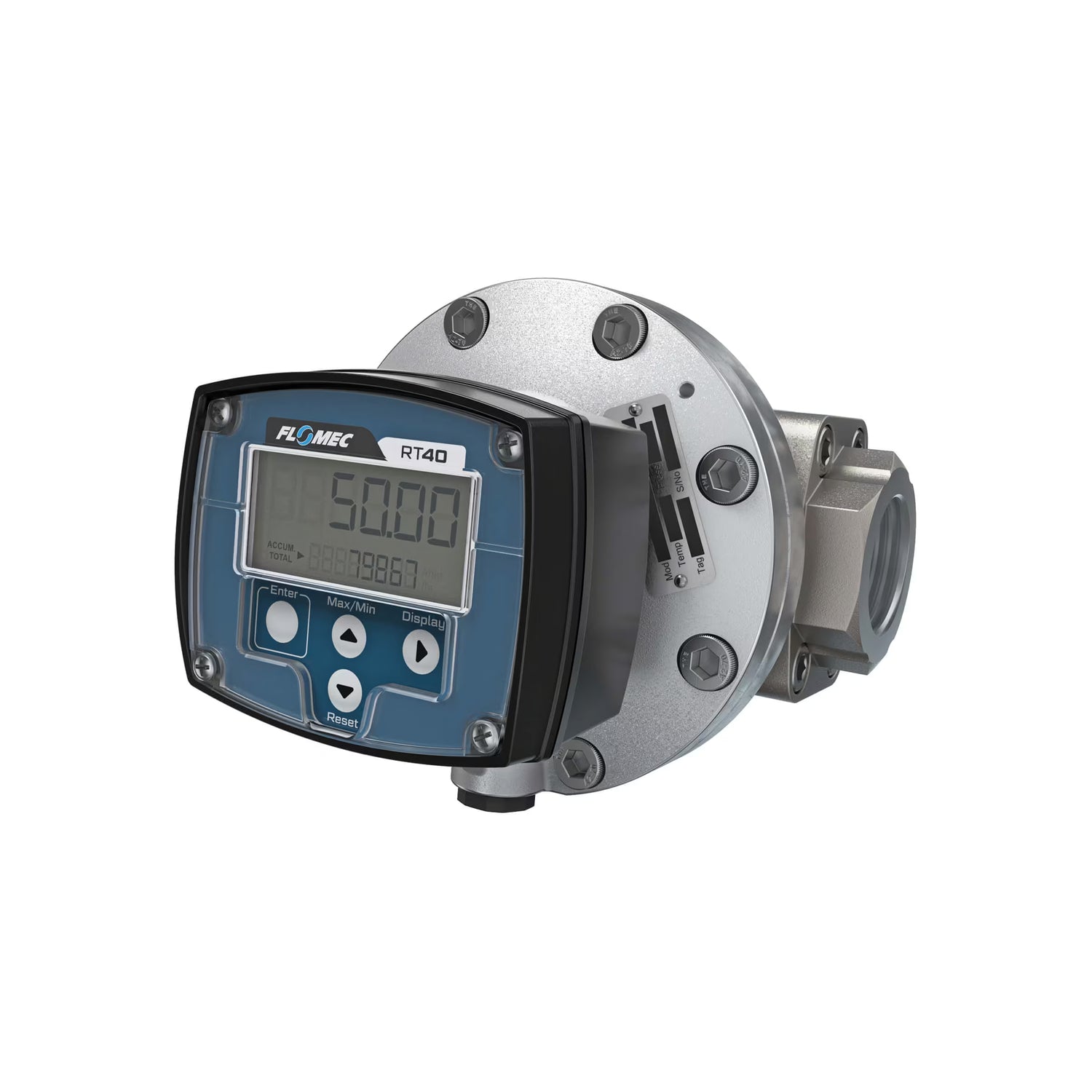

1-1/2" Oval Gear Aluminum NPT Flow Meter, RT40 Transmitter with Built-In Digital Display

1-1/2-inch Aluminum Oval Gear Flow Meter with NPT Fittings. RT40 Transmitter with Built-In Digital Display. For fuel additives, solvents, grease, oil, paint.

The FLOMEC Aluminum Oval Gear Series is the ideal economical choice for high-accuracy batching, dosing, or packaging of clean solvents, grease, oil, additives, and other high-viscosity fluids. Oval gear technology features rotors that provide highly accurate and repeatable direct volumetric readings.

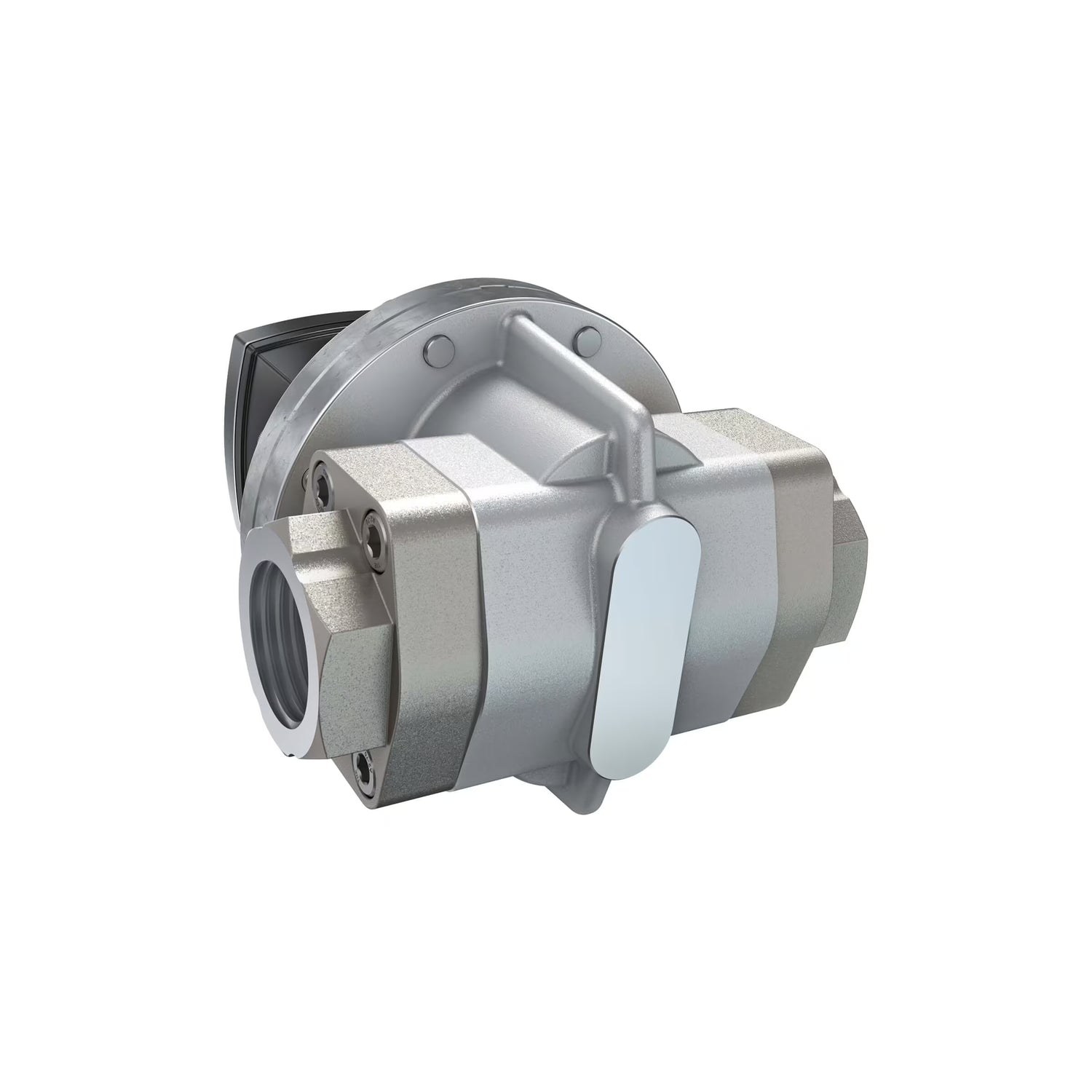

Flow Meter: No requirement for flow conditioning or straight pipe runs makes them ideal for compact installations with limited space.

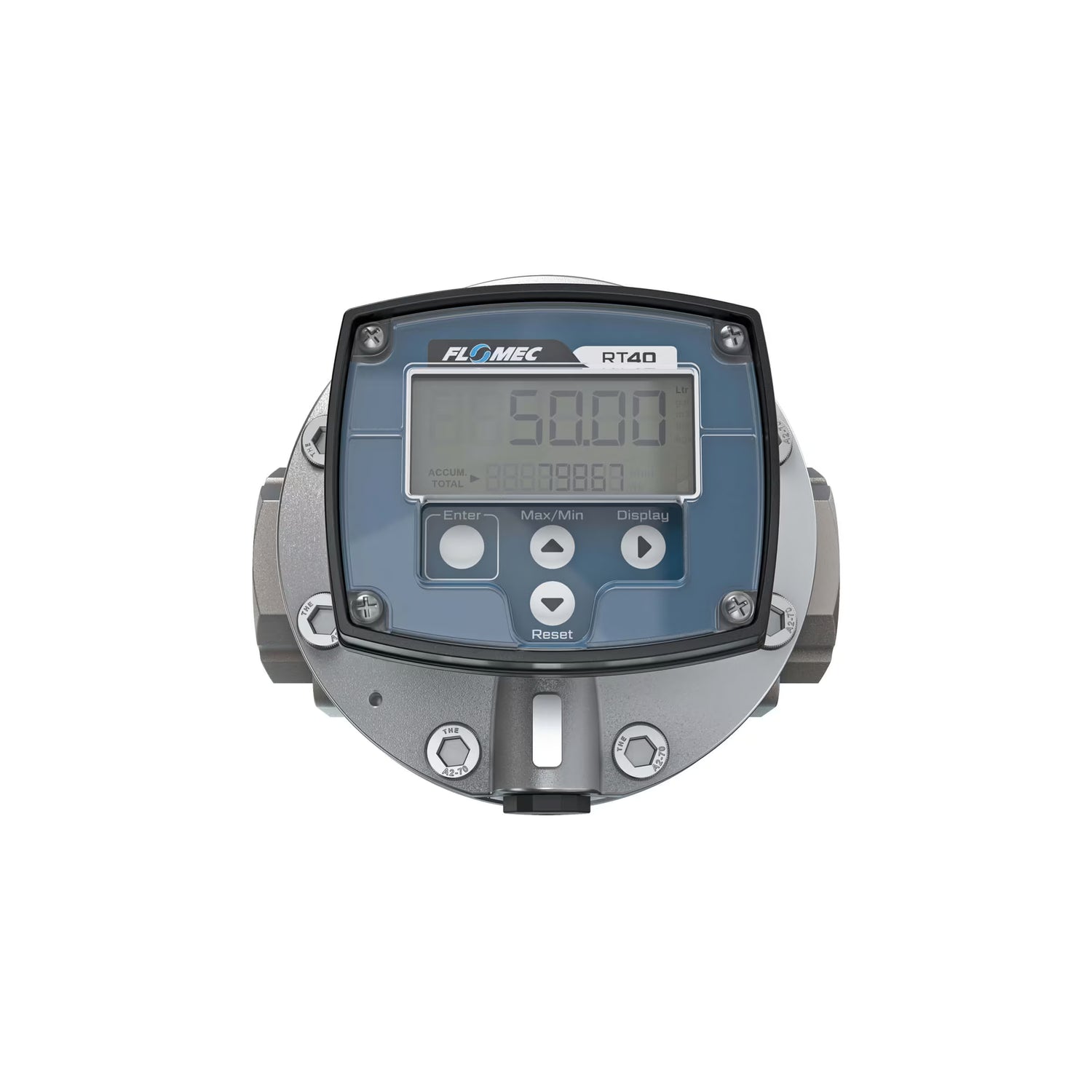

RT40 Transmitter/Display: Fully programmable self-powered display with re-settable (batch) total, cumulative total, and instantaneous flow rate. This four-button design can provide an externally powered discrete output or high/low alarms for easy connection to a variety of chart recorders, display equipment, and process control equipment.

Make EASY & SECURE PIN-Protected Configuration adjustments to the RT40 using the FLOMEC CDS Configuration & Diagnostics software. See CDS VIDEO below.

Software is for PC ONLY. A USB Cable is required - Check RT40 for USB TYPE.
For more information or to download software visit FLOMEC-cds.com.
